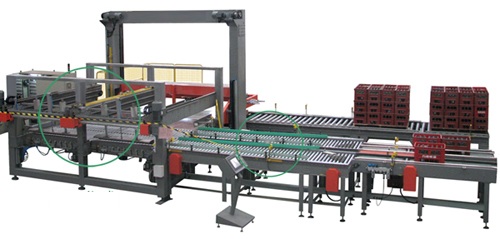

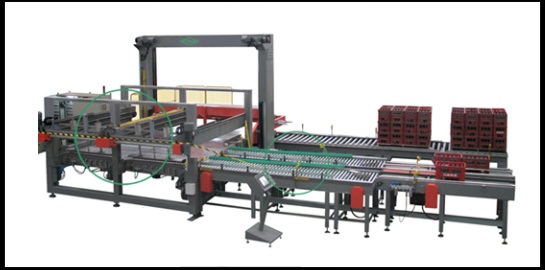

Low level double-infeed double-stack Palletizer Model : MT-DLPD600

Machine Model
MT-DLPD600/DLPD800

Machine Features
→ The high speed with a maximum of 80 cases/min can be reached.
→ The height of in-feed conveyor will be designed to meet with the customers'
factory configuration.
→ Higher flexibility, double-stack palletizer can simultaneously palletize
products from two wrappers or double-in-feed conveyors, if one of the
conveyors breaks down, the customer can still choose single way in-feed
palletizing to continue production.
→ Saving space, one double-stack palletizer can reach the capacity of two
single-stack palletizers, but less space needed.
→Saving cost, in the sense of investment, one set of double-stack palletizer
is much cheaper than two sets of single-stack palletizer.
→Longer working life-span, the special design of high-level in-feed and
low-level out-feed on conveyors has greatly reduced the range of hoist's
up-and-down movement which helps to lengthen the machine's life-span,
besides, this has also brought the convenience for maintenance.

Machinery Parameters
→ Max capacity:60cartons-80cartons/min
→ Max pallet magazine capacity per layer:250kg
→ Max pallet magazine capacity:1500kg
→ Max pallet height:1800mm
→ Standard pallet size:1200mm*1000mm
→ Electric power installed:25kw
→ Compressed air pressure:7bar
→ Compressed air consumption:200L/min
