MODEL: MT-301FB

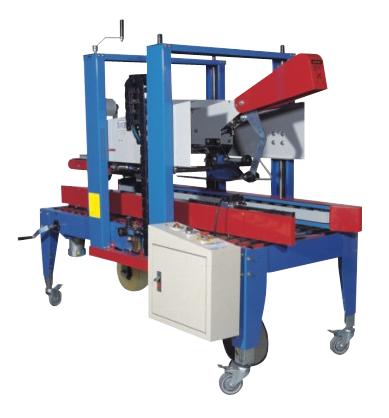

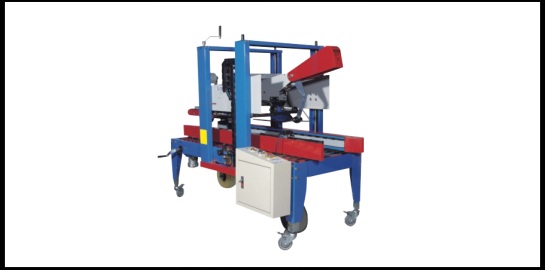

  • Top Flap Folding Carton Sealer Machine Model : MT-301FB

    Product Description

    • Automatically folds top, bottom and side flaps speedily and smoothly

      Driven by 4 sets of belts: top, bottom and sides.

      Adopts pneumatic pressure to fold side flaps, which makes folding easier.

      Easy to operate, standard components available.

    Product Specifications

    Power

    110/220 V, 50/60 Hz , 1 Phase

    Packing size

    L200~600 , W150~500 , H150~500 mm

    Speed

    1~15 Cases/Min

    Tape

    2" (2 1/2",3" Optional)

    Table height

    630 mm (Adjustable Range 600~700 mm)

    Air

    5 kg/cm2

    Machine weight

    260kgs

    Machine size

    L1680 x W1080 x H1640 mm

    Certifications

    CE

    Others 1

    *Custom Design Available
