MODEL: MT-502T

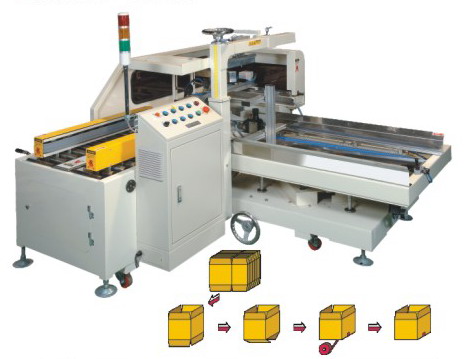

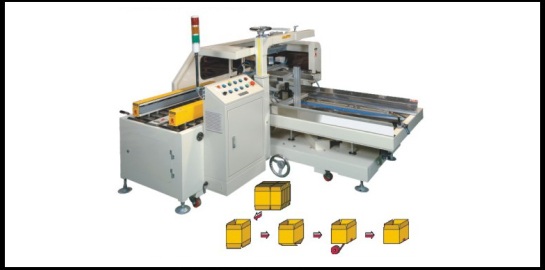

  • Auto Carton Erector and Sealer (Vertical Type) Machine Model : MT-502T

    Product Description

    • Erects and forms cartons: folds and seals bottom flaps fully automatically.

      User-friendly. Durable, easy to operate and load tapes.

      Two sides belt drives, suitable for small, heavy or lower cartons.

      PLC control.

    • ChromeFirefoxOperaSafariIf you still using Internet Explorer download this MP4 your browser is not ready yet for html5 video !!

    Product Specifications

    Power

    220 V, 50/60 Hz , 1 Phase

    Carton size

    L200~400 , W250~400 , H200~400 mm

    Speed

    6~10Cases/Min

    Tape

    2" (2 1/2",3" Optional)

    Tabke height

    630 mm (Adjustable Range 600~700mm)

    Air

    5 kg/cm2

    Machine weight

    380kgs

    Machine size

    L2000 x W950 x H1420 mm



    Certifications

    CE

    Others 1

    *Custom Design Available.
