MODEL: MT-P260

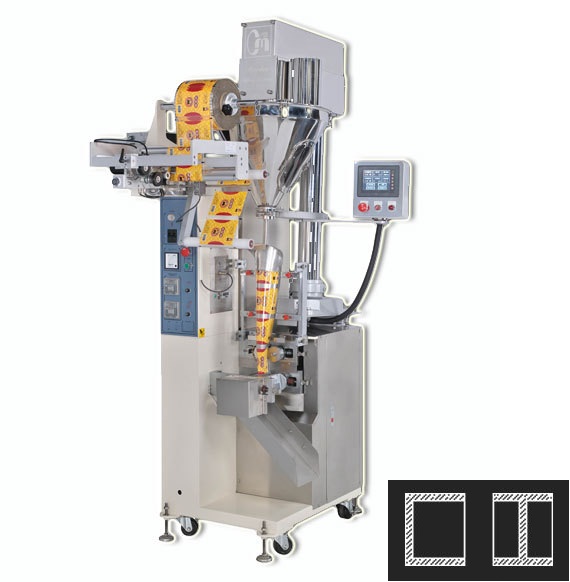

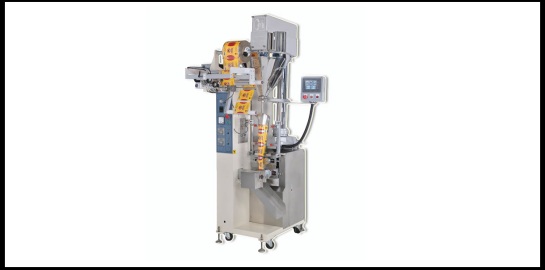

  • Powder Packing Machine Model : MT-P260


    ■ Application：
    Suitable for foods, Medicines, Chemicals, Pesticides…etc, and for powder in Film Form / Bag Seal.

    ■ Features：

    1 - Human Machine Interface Control System, Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor orientation accurate.

    3 - Mix Motor by Servo Motor, high torque.

    4 - Touch Temperature Control, easy to set. Stable & Excellent sealing effect.

    5 - The sealing blade roller is equipped with self-lubricating bearing which feature high temperature resistance and lubrication free.

    6 - All parts that powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Seal Type 3-Sides seal / Pillow Seal

    Filling Range 1g~100g

    Filling Speed 20~40 bags/min

    Accuracy ± 1 / 100

    Bag Length 50~180mm

    Bag Width 40~130mm

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 4.5 KW

    Machine Size L1000 x W1400 x H2200mm

    Machine Weight 430 KG
