MODEL: MT-P153VW

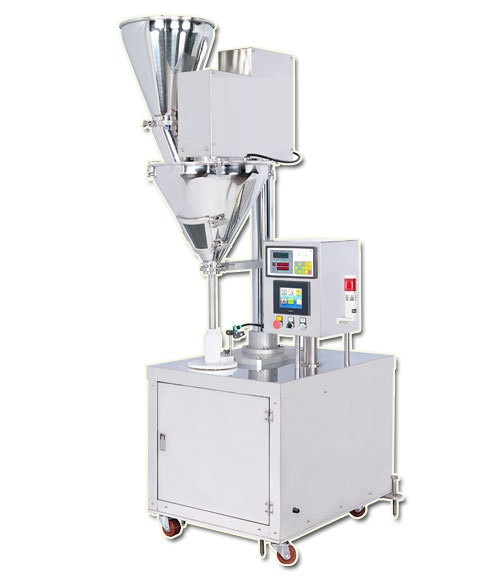

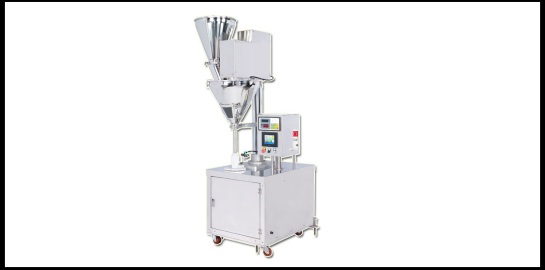

  • Powder Packing Machine Model : MT-P153VW

    ■ Application：
    Suitable for foods, Medicines, Chemicals, Pesticides…etc, and for powder in Bottle or Bag pack.

    ■ Features：

    1 - Human Machine Interface Control System,Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor , orientation accurately.

    3 - Mixer Motor by Servo Motor, high torque.

    4 - Equip with weighing system, Fast & Slow two sections speed control, filling exactly.

    5 - All parts that powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Filling Range 1~3000g

    Filling Speed 6~20 Containers/min

    Accuracy ±1~5g

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 2.25 KW

    Machine Size L.900 x W.700 x H.2230mm

    Machine Weight 270 KG
