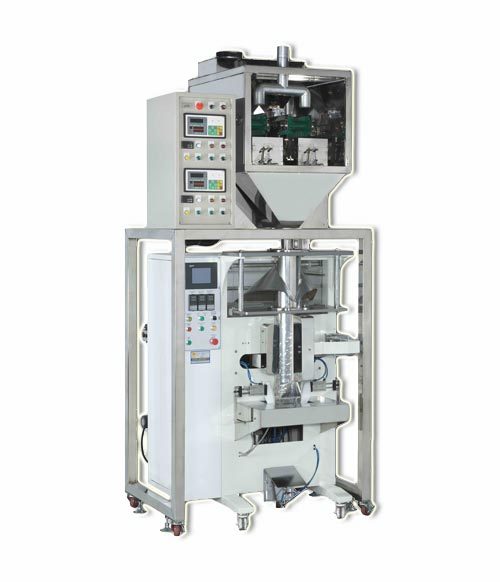

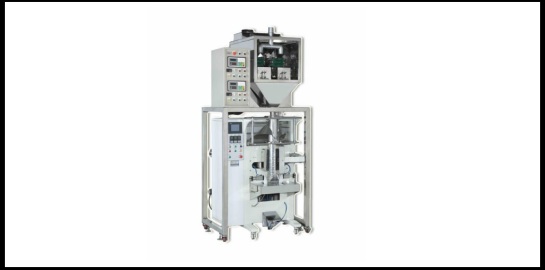

Automatic Granular Weighing Filler (Double Weighing) Model : MT-G212

■ Application：
Suitable for large bag type, filling product such us: Granular, Beans、Rice、Sugar、Salt、Chemical…etc.

■ Features：

1- Sanitary High quality Feeding Belt.

2- AC Motor & Inverter design has two different speeds.

3- 2 sections weighing & filling : First section: Large volume filling. Second section: micro volume adjustment.

4- Double weighing devices, filling and replenish material continually.

5- All parts that contact with filling products are made by SUS 304# and with polishing dispose. Meet with G..M.P. Standard.

6- No material no filling safety system.

7- Sensor device, tracking bag length accurately.

8- Human Machine Interface, easy to operate and setting requested bag length.

■ Specification

Filling Range 200g~3000g

Filling Speed 20~30 bags/min

Accuracy ± 1g~2g

Bag Length 100~280mm

Bag Width 85~260mm

Seal Type / Pillow Seal

Heater Consumption Up Seal: 700W*1pc，End Seal:180W*2pcs

Power, Source 220/380 Volts, 3 Phase

Power Consumption 2.4 KW

Machine Size L1380 x W1270 x H2950mm
