MODEL: MT-G324

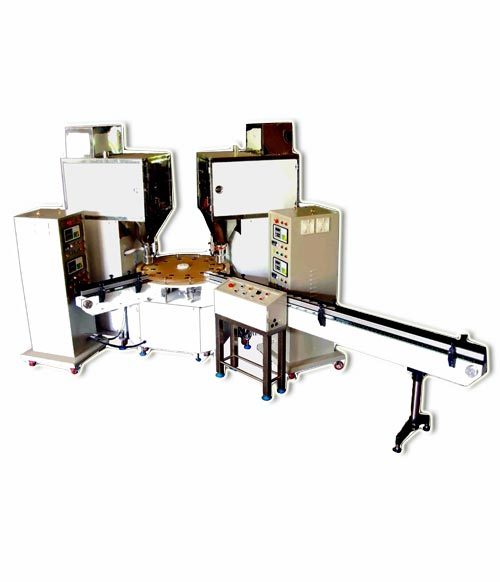

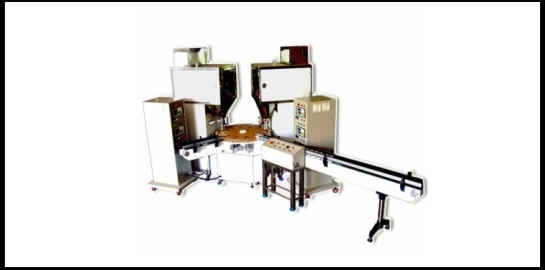

  • Automatic Granular Weighing Filler (For Bottle) Model : MT-G324


    ■ Application：
    Suitable for Granulated Product, such us: Beans、Rice、 Sugar、Salt、Chemical …etc, in Containers, Bottles, Jars pack.

    ■ Features：

    1- Sanitary High quality Feeding Belt.

    2- Double filling devices with 4 feeding belts, high efficient.

    3- AC Motor & Inverter design has two different speeds.

    4- 2 sections weighing & filling : First section: Large volume filling. Second section: micro volume adjustment.

    5- Automatic index device, orientation accurately.

    6- No bottle no filling safety system.

    7- Can choose Single or double filling devices.

    8- All parts that contact with filling products are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Filling Range 50g~1000g

    Filling Speed 40~50 Containers/min

    Accuracy ± 1g~2g

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 1.25 KW

    Machine Size L2300 x W2300 x H2400mm
