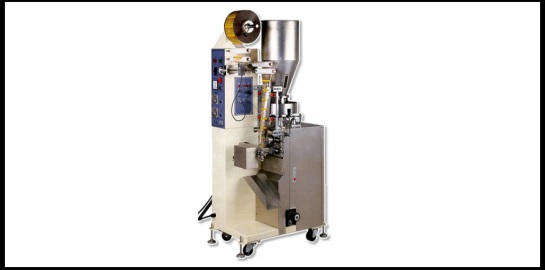

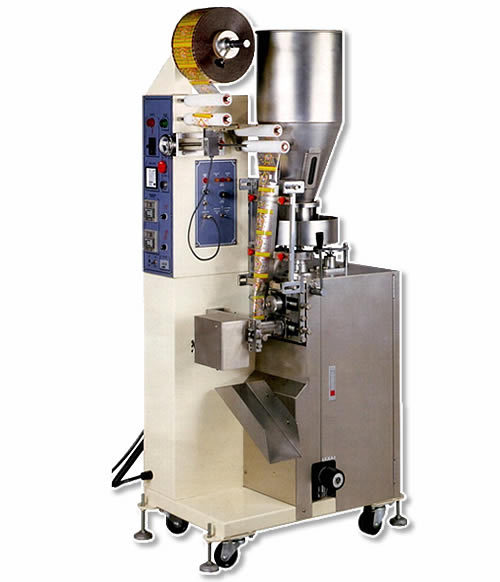

Automatic Granular Filling Machine (Film Form Fill & Seal) Model : MT-G160C

■ Application：
Suitable for foods, Medicines, Chemicals, Pesticides…etc, and for flowing granule or powder in Film Form / Bag Seal.

■ Features：

1- Cup Volumetric device may pack a wide range of different products, Such us: sugar、salt、seeds、beans、pepper and many others free flowing products.

2- Auto. Photo Sensor device, bag-pitch correct and quickly.

3- The vertical seal and end seal is cross line (+) type and width is 10mm. The cut edge and end seal can choose (—) type or (/\/\/\) type

4- No Film No fill.

5- All parts that granule or powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

■ Specification

　

Seal Type 3-Sides Seal Pillow Seal

Filling Speed 30~60 bags/min 30~60 bags/min 包/分

Bag Length 50~120mm 50~120mm

Bag Width A. 30~80mm / B. 80~160mm A. 25~70mm / B. 70~150mm

Power, Source 220/380 Volts, 1 Phase 220/380 Volts, 1 Phase

Power Consumption 2.175 KW 2.175 KW

Machine Size L.750 x W.600 x H.1750mm L.750 x W.600 x H.1750mm

Machine Weight 350 KG 350 KG
