MODEL: MT-230E

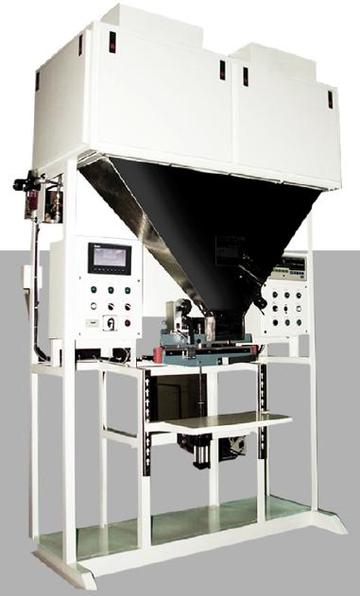

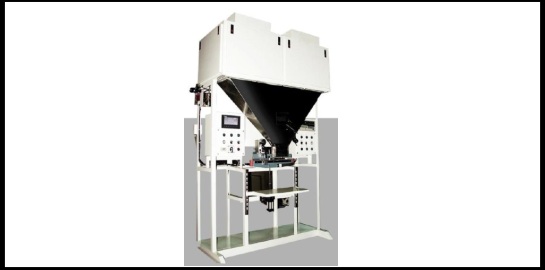

  • Granule Packing Machine Model : MT-230E

    Feature:

    1. Suit for Product which with good flow ability. (Gravity Filling Type)

    EX: Rice, Beans, Corns, Seeds, Wheat, Bolt, Screw, Metal Parts, Electrical Parts...etc.

    2. The machine can be connected with bag sealer or bag sewing machine

    3. Load-cell: HBM (Germany)

    4. Pneumatic System: Bosch (Germany)

    5. AirCylinder: Bosch (Germany)

    6. Weighing Indicator: AND (Japan)

    7. PLC control system

    8. Touch screen control panel

    9. Two scales- Net weight

    10. Equipped with 30 sets of weight memories, operators only need to touch the panel to choose different weights, no need to change any part

    11. The machine is equipped with auto malfunction detecting system, the malfunction will be shown on the panel and tell operator how to handle the problem.

    Packing Range 100g~3kg/ 3kg~10kg
    Speed: 8~14 Bags/Minute
    Accuracy Depending on product specification
