MODEL: MT-L160

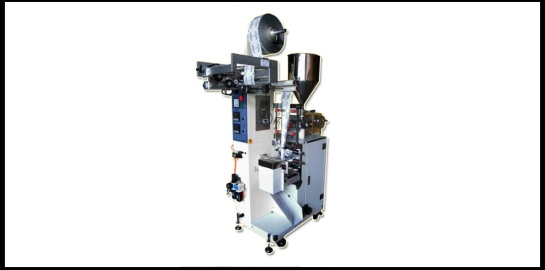

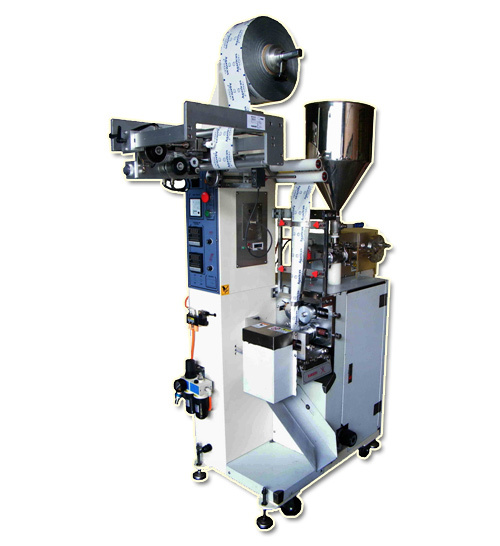

  • Automatic Liquid Filling Machine (Film Form Fill & Seal) Model : MT-L160


    ■ Application：
    Suitable for filling small packets with liquid, such us: foods, shampoo Cosmetics, Medicines, Chemicals…etc, automatic Film Form / Bag Seal.

    ■ Features：

    1- Filling by Crank piston cylinder, can pack a wide range of free flowing liquid, semi-viscous or viscous paste.

    2- Anti-drip device prevents sticky liquids dripping and keeping the the sealing area clean and tight.

    3- Touch Temperature Controller, easy to set. Stable & Excellent sealing effect.

    4- The sealing blade roller is equipped with self-lubricating bearing which feature high temperature resistance and lubrication free.

    5- All parts that liquid flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Seal Type 3-Sides Seal / 4-Sides Seal

    Filling Range 2~30c.c.

    Filling Speed 20~40 bags/min

    Accuracy ± 1 / 100

    Bag Length 30~80mm

    Bag Width 50~120mm

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 1.5 HP / 1.125 KW

    Machine Size L580 x W940 x H1750mm

    Machine Weight 320 KG
