MODEL: MT-L3410

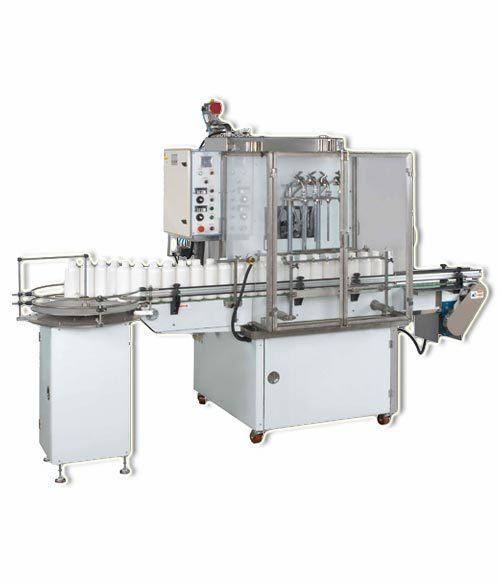

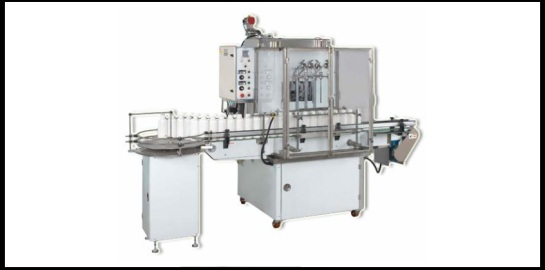

  • Automatic Liquid Volumetric Filling Machine

  • Model : MT-L3410


    ■ Application：
    Suitable for large volume, high viscosity or flowing liquid that easy to foamy and spume.

    ■ Features：

    1- Designed by Mechanical transmission, volumetric and filling stable.

    2- All in one volume adjustment save time and easy to operate.

    3- Filling Motor equipped with Inverter, enable to adjust feeding speed.

    4- Filling nozzle dip into containers, avoid liquid foamy.

    5- Check Valve designed ensures accuracy and clean.

    6- No bottle no filling safety system.

    7- Filling nozzle is easy to disassemble and maintain.

    PS: 1. Can equip with Auto. Bottle turn table.

    ■ Specification

    Filling Range 200 c.c.~1000 c.c.

    Filling Speed 16~20 bottles/min

    Accuracy ± 1%

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 1.25 KW

    Machine Size L2400 x W1150 x H1970mm
