MODEL: MT-L1210-H
-

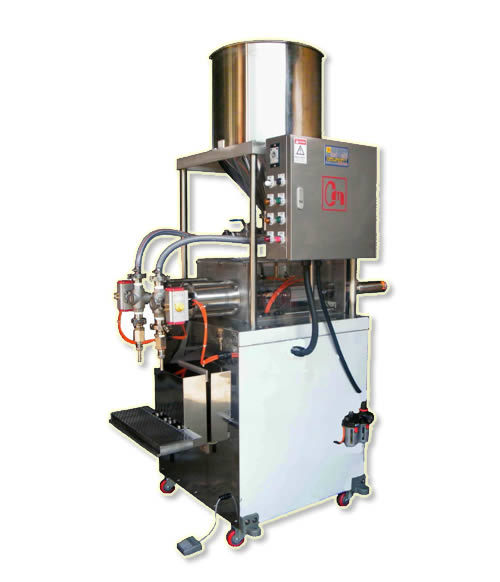

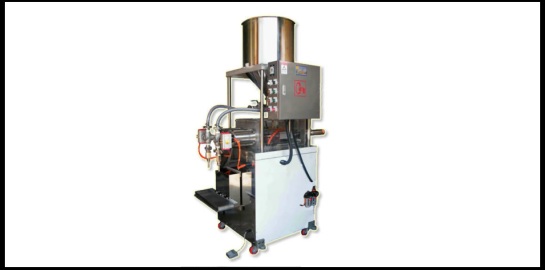

Semi-Automatic Liquid Filling Machine Model : MT-L1210-H
■ Application：
Suitable for high viscosity or flowing liquid that easy to foamy and spume.■ Features：
1- Filling by air cylinder driven with quantitative cylinder.
2- Filling speed stable and smoothly, it can be adjust separately.
3- Volume adjusted by scale and individually, easy to operate.
4- Check Valve designed ensure accuracy and easy to clean.
5- Equipped with lifting platform can be suitable for various height bottle.
6- Filling nozzle is easy to disassemble and maintain.
7- All parts that contact with liquid and filling nozzles are made by SUS.304#.
PS:
1.Please prepare air compressor when use this machine.
2.Equipped with 4 sets filling nozzles are decided by user.■ Specification
Filling Range 200 c.c. ~ 1000 c.c
Filling Speed 12~16 bottles/min
Accuracy ± 1%
Power, Source 220/380 Volts, 3 Phase
Power Consumption 0.2 KW
Machine Size L.700 x W.700 x H.2000mm
