MODEL: MT-L1250-PVC

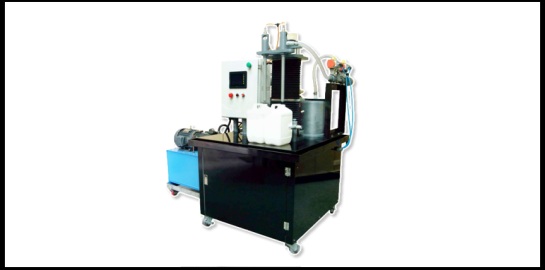

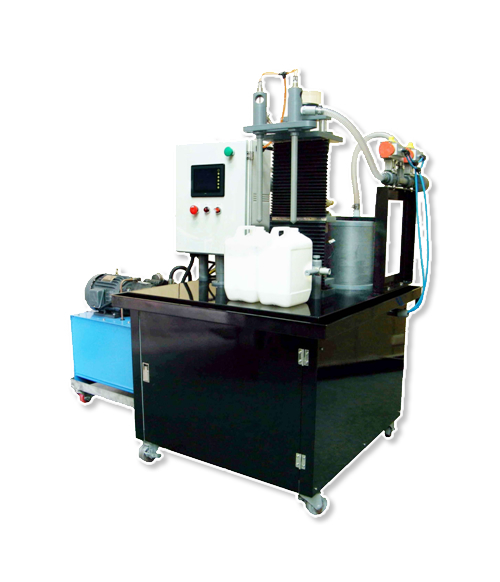

  • Semi-Automatic Liquid Filler (Hydraulic Press) Machine

  • Model : MT-L1250-PVC



    ■ Application：
    Suitable for alkaline liquid in large volume, high viscosity or flowing liquid that easy foamy or spume.

    ■ Features：

    1- Filling by hydraulic press and drive with quantitative cylinder.

    2- Filling speed stable and smoothly.

    3- Filling and feeding speeds can be adjusted separately.

    4- Filling nozzle dip into bottle, avoid liquid foamy or spume.

    5- Air-control valve and Anti-drip design ensure accuracy and easy to clean.

    6- Filling nozzles are easy to disassemble and maintain.

    7- All parts that contact with liquid are made by PVC material.

    8- Machine body are made by stainless steel and covered with PVC coating.

    PS: 1. Please prepare air compressor when use this machine.

    ■ Specification

    Filling Range 1000 c.c.~5000 c.c

    Filling Speed 6~8 bottles/min

    Accuracy ± 1/500

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 2.5 KW

    Machine Size L970 x W1020 x H1600mm
