MODEL: MT-L1230W

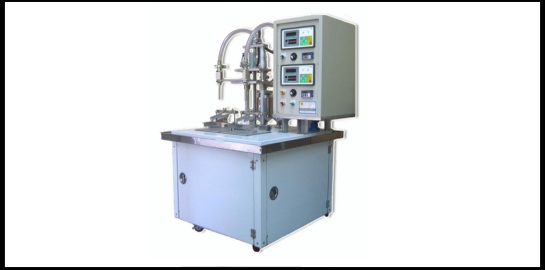

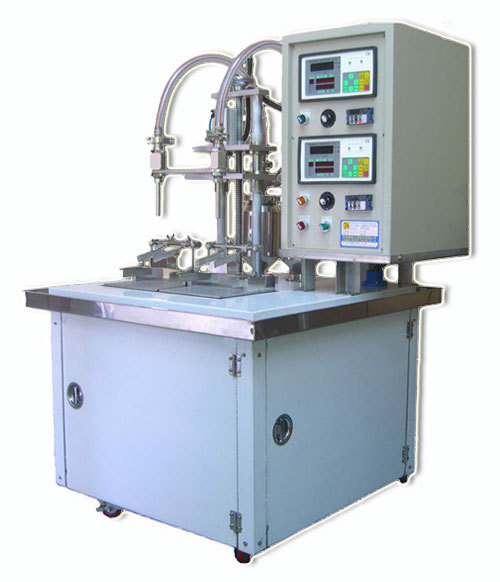

  • Semi-Automatic Liquid Filling Machine

  • Model : MT-L1230W


    ■ Application：
    Suitable for high viscosity or flowing liquid that easy to foamy and spume.

    ■ Features：

    1- Gear Pump, made of stainless steel.

    2- Weighing method with high accurately.

    3- Volume adjusted by Monitor, easy to operate.

    4- 2 sections weighing & filling:First section: Large volume filling high-speed.Second section: micro volume adjustment low-speed.

    5- Filling speed is adjustable.

    6- Filling nozzle is easy to disassembled and clean.

    7- All parts that contact with filling products are made by SUS 304# and with polishing process. Meet with G.M.P. Standard.

    PS:1.Please prepare air compressor when use this machine.

    ■ Specification

    Filling Range 50c.c.~3000c.c.

    Filling Speed 10~14 bottles/min

    Accuracy ± 1%

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 1.25 KW

    Machine Size L920 x W920 x H1400mm
